385-1657 3851657 Caterpillar pistons

2017年9月27日

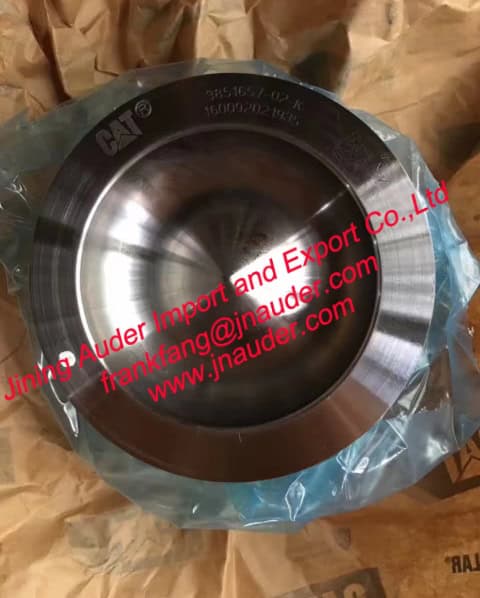

CROWN AS-PISTON

Description：

Crowns are important components of pistons, which are connected to crankshafts via connecting rods

Compatible model：

140M, 160M, 2290, 2390, 2391, 2491, 2590, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 2, 551, 552, 552 2, 586C, 627G, 637D, 637E, 637G, 814F

weight 1.66 kg




Illustration 34	g03072416
Section view of piston showing pin of the ring groove gage

Table 2
Specifications of Pistons
Model	Part Number of Piston			Pin Bore Diameter	Top Ring Groove
	One Piece	Two-Piece			Straight or Tapered	Width of Straight Groove	Tapered Ring Groove Gauge	Pin for Tapered Ring Groove
	One Piece	Crown	Skirt		Straight or Tapered	Width of Straight Groove	Tapered Ring Groove Gauge	(B)	(A)
C7	–	150- 4621	238- 2726	40.031 ± 0.007 mm (1.5760 ± 0.0003 inch)	T	–	186- 0190	2.540 mm (0.1000 inch)	104.709 ± 0.040 mm (4.1224 ± 0.0016inch)
	–	165- 4265	238- 2726	40.031 ± 0.007 mm (1.5760 ± 0.0003 inch)	T	–	186- 0190	2.540 mm (0.1000 inch)	104.709 ± 0.040 mm (4.1224 ± 0.0016inch)
	238-2698	–	–	40.012 ± 0.003 mm (1.5753 ± 0.0001 inch)	T	–	325- 8420	3.162 mm (0.1245 inch)	109.610 ± 0.100 mm (4.3153 ± 0.0039 inch)
	238-2720	–	–	40.038 ± 0.010 mm (1.5763 ± 0.0004 inch)	T	–		3.000 mm (0.1181 inch)	108.664 ± 0.080 mm (4.2781 ± 0.0031 inch)
	262-7330	–	–	46.015 ± 0.003 mm (1.8116 ± 0.0001 inch)	T	–		3.200 mm (0.1260 inch)	110.189 ± 0.075 mm (4.3381 ± 0.0030 inch)
	262-9288	–	–	40.012 ± 0.003 mm (1.5753 ± 0.0001 inch)	T	–		3.200 mm (0.1260 inch)	110.189 ± 0.075 mm (4.3381 ± 0.0030 inch)
	278-0574	–	–	40.012 ± 0.003 mm (1.5753 ± 0.0001 inch)	T	–		2.900 mm (0.1142 inch)	107.830 ± 0.080 mm (4.2453 ± 0.0031 inch)
	280-281	–	–	40.071 ± 0.010 mm (1.5776 ± 0.0004 inch)	T	–		3.000 mm (0.1181 inch)	108.664 ± 0.080 mm (4.2781 ± 0.0031 inch)
C-9	–	197- 9297	324- 7380	46.020 ± 0.005 mm (1.8118 ± 0.0002 inch)	T	–	325- 8417	2.540 mm (0.1000 inch)	110.340 ± 0.100 mm (4.3441 ± 0.0039 inch)
	–	197- 9345	324- 7380		T	–	325- 8421	3.300 mm (0.1299 inch)	113.059 ± 0.100 mm (4.4511 ± 0.0039 inch)
	–	238- 2701	324- 7380		T	–	325- 8421	3.300 mm (0.1299 inch)	113.059 ± 0.100 mm (4.4511 ± 0.0039 inch)
C9	–	197- 9303	324- 7380	46.020 ± 0.005 mm (1.8118 ± 0.0002 inch)	T	–	325- 8421	3.300 mm (0.1299 inch)	113.059 ± 0.100 mm (4.4511 ± 0.0039 inch)
	–	197- 9345	324- 7380		T	–
	–	197- 9368	324- 7380		T	–
	–	238- 2701	324- 7380		T	–
	–	265- 1401	324- 7380	46.020 ± 0.005 mm (1.8118 ± 0.0002 inch)	T	–		3.300 mm (0.1299 inch)	113.059 ± 0.100 mm (4.4511 ± 0.0039 inch)
	–	272- 2312	324- 7380	46.020 ± 0.005 mm (1.8118 ± 0.0002 inch)	T	–		3.300 mm (0.1299 inch)	113.059 ± 0.100 mm (4.4511 ± 0.0039 inch)
C9	238-2720	–	–	40.038 ± 0.010 mm (1.5763 ± 0.0004 inch)	T	–	325- 8420	3.000 mm (0.1181 inch)	108.664 ± 0.080 mm (4.2781 ± 0.0031 inch)
C9	385-1657	–	–	46.04 ± 0.01 mm (1.813 ± 0.0004 inch)	T		325- 8421	3.300 mm (0.1299 inch)	113.059 ± 0.100 mm (4.4511 ± 0.0039 inch)
C9.3	357-0447 319-7886 262-7331 369-5326	–	–	50.013 ± 0.003 mm (1.9690 ± 0.0001 inch)	T	–	418-9826	3.270 mm (0.1287 inch)	115.845 ± 0.110 mm (4.5608 ± 0.0043 inch)
C10	–	133-7098 197- 9358 4P- 5852	238- 2710	50.815 ± 0.005 mm (2.0006 ± 0.0002 inch)	T	–		3.500 mm (0.1378 inch)	123.530 ± 0.097 mm (4.86338 ± 0.00382 inch)
C11	197-9381	–	–	53.250 ± 0.010 mm (2.0965 ± 0.0004 inch)	T	–	208- 7632	3.500 mm (0.1378 inch)	128.530 ± 0.097 mm (5.0602 ± 0.0038 inch)
C11	265-1111	–	–	53.250 ± 0.010 mm (2.0965 ± 0.0004 inch)	T	–	208- 7632	3.500 mm (0.1378 inch)	128.530 ± 0.097 mm (5.0602 ± 0.0038 inch)
C-12	–	144- 2948	238- 2712	53.190 ± 0.005 mm (2.0941 ± 0.0002 inch)	T	–	208- 7632	3.500 mm (0.1378 inch)	128.530 ± 0.097 mm (5.0602 ± 0.0038 inch)
	–	197- 9328	238- 2712		T	–
	–	197- 9374	238- 2712		T	–
C12	–	144- 2948	238- 2712	53.190 ± 0.005 mm (2.0941 ± 0.0002 inch)	T	–	208- 7632	3.500 mm (0.1378 inch)	128.530 ± 0.097 mm (5.0602 ± 0.0038 inch)
	–	197- 9328	238- 2712	53.190 ± 0.005 mm (2.0941 ± 0.0002 inch)	T	–
	280- 7098	–	–	53.260 ± 0.010 mm (2.0969 ± 0.0004 inch)	T	–
C13	238-2713	–	–	53.220 ± 0.010 mm (2.0953 ± 0.0004 inch)	T	–	–	3.500 mm (0.1378 inch)	128.72 ± 0.097 mm (5.0677 ± 0.0038 inch)
C13	265-1313	–	–	53.220 ± 0.010 mm (2.0953 ± 0.0004 inch)	T	–	208- 7632	3.500 mm (0.1378 inch)	128.530 ± 0.097 mm (5.0602 ± 0.0038 inch)
	267-2068	–	–	53.250 ± 0.010 mm (2.0965 ± 0.0004 inch)	T	–
	286-7208 339-8177 322-0329 342-6357 388-9353 197-9383	–	–	53.250 ± 0.010 mm (2.0965 ± 0.0004 inch)	T	–
	322-3148 322-3146	–	–	57.367 ± 0.01 mm (2.2585 ± 0.0004 inch)	T	–		3.4 mm (0.1339 inch)	127.67 ± 0.097 mm (5.0263 ± 0.0038 inch)
	384-3698	–	–	53.250 ± 0.010 mm (2.0965 ± 0.0004 inch)	T	–	–	3.4 mm (0.1339 inch)	127.67 ± 0.097 mm (5.0263 ± 0.0038 inch)
C-15	–	180- 7351	132- 6663	55.019 ± 0.045 mm (2.1661 ± 0.0018 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	–	180- 7352	132- 6663		T	–
	–	221- 2305	132- 6663		T	–
	–	225- 0115	132- 6663		T	–
C15	–	145- 6700	130- 0241	55.077 ± 0.008 mm (2.1684 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	247-6123	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–
	248-5516	–	–		T	–
	252-0656	–	–		T	–
	306-7460	–	–		T	–
	325-9492	–	–	60.095 ± 0.010 mm (2.3659 ± 0.0004 inch)	T	–		3.400 mm (0.1339 inch)	135.680 ± 0.119 mm (5.3417 ± 0.0047 inch)
	330-7762	–	–		T	–
	346-6616
	352-4981
	342-6359
	346-6618
	346-6615
C-16	–	139- 8500	284- 6039	55.030 ± 0.005 mm (2.1665 ± 0.0002 inch)	T	–	208- 7636	3.300 mm (0.1299 inch)	137.436 ± 0.100 mm (5.4109 ± 0.0039 inch)
C-16	–	192- 8810	284- 6039	55.030 ± 0.005 mm (2.1665 ± 0.0002 inch)	T	–	208- 7636	3.300 mm (0.1299 inch)	139.910 ± 0.100 mm (5.5083 ± 0.0039 inch)
C-18	329-4509 235-8098	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	–	3.300 mm (0.1299 inch)	142.250 ± 0.100 mm (5.6004 ± 0.0039 inch)
C18	319-6715	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	–	3.300 mm (0.1299 inch)	142.250 ± 0.100 mm (5.6004 ± 0.0039 inch)
	329-4509	–	–		T	–
	329-4510	–	–		T	–
	329-4511	–	–		T	–
	368-7816	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	368-7815	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	368-7817	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	372-4884	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	372-4970	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	368-8185	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	396-0368	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	368-7818	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T		325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	362-9350	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	–	3.8 mm (0.150 inch)	146.425 ± 0.125 mm (5.7647 ± 0.0050 inch)
	362-9351	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	–	3.8 mm (0.150 inch)	146.425 ± 0.125 mm (5.7647 ± 0.0050 inch)
C18 Marine	219-8102	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	325- 8418	2.54 mm (0.100 inch)	143.5 ± 0.1 mm (5.649 ± 0.0039 inch)
C18 Marine	368-8179	–	–	60.125 ± 0.005 mm (2.36712 ± 0.00020 inch)	T	–	–	3.6 mm (0.14173 inch)	144.705 ± 0.125 mm (5.69704 ± 0.00492 inch)
C27	247-7791	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.110 mm (5.3079 ± 0.0043 inch)
	247-7792	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.110 mm (5.3079 ± 0.0043 inch)
	376-7362	–	–	60.095 ± 0.01 mm (2.3659 ± 0.004 inch)	T	–	–	3.4 mm (0.1338 inch)	135.6795 ± 0.1185 mm (5.34170 ± 0.00467 inch)
	381-9250	–	–		T	–	–
	381-9249	–	–		T	–	–
	347-3241	–	–		T	–	–
	346-6617	–	–		T	–	–
C30	235-6257	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	325- 8419	2.540 mm (0.1000 inch)	143.500 ± 0.100 mm (5.6496 ± 0.0039 inch)
C32	319-6716	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	–	3.300 mm (0.1299 inch)	142.250 ± 0.100 mm (5.6004 ± 0.0039 inch)
	319-6717	–	–		T	–
	330-6090	–	–		T	–
	375-8134	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	361-5742	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	361-5744	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	394-3591	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	375-8261	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	367-5181	–	–	60.095 ± 0.005 mm (2.3659 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	367-5160	–	–	60.125 ± 0.005 mm (2.3671 ± 0.0002 inch)	T	–	325- 8425	3.6 mm (0.1417 inch)	144.705 ± 0.125 mm (5.6970 ± 0.0049 inch)
	338-3641	–	–	60.095 ± 0.005 mm (2.3659 ± 0.0002 inch)	T	–	–	3.8 mm (0.150 inch)	146.425 ± 0.125 mm (5.7647 ± 0.0050 inch)
3044C	234-4814	–	–	30.005 ± 0.005 mm (1.1813 ± 0.0002 inch)	T	–	4C- 8164	2.550 mm (0.1004 inch)	95.112 ± 0.210 mm (3.7445 ± 0.0082 inch)
3044C	239-8506	–	–	30.005 ± 0.005 mm (1.1813 ± 0.0002 inch)	T	–	4C- 8164	2.550 mm (0.1004 inch)	95.112 ± 0.210 mm (3.7445 ± 0.0082 inch)
3046	107-0984	–	–	30.005 ± 0.005 mm (1.1813 ± 0.0002 inch)	T	–	4C- 8164	2.550 mm (0.1004 inch)	95.112 ± 0.210 mm (3.7445 ± 0.0082 inch)
	107-8366	–	–		T	–
	128-2952	–	–		T	–
	128-3295	–	–		T	–
	160-6600	–	–		T	–
	200-7904	–	–		T	–
	225-4284	–	–		T	–
3064 3066	297-7750	–	–	34.007 ± 0.005 mm (1.3389 ± 0.0002 inch)	T	–	4C- 8164	3.000 mm (0.1181 inch)	102.336 ± 0.241 mm (4.0290 ± 0.0095inch)
	297-7751	–	–		T	–
	297-7752	–	–		T	–
	297-7753	–	–		T	–
3114	105-1710	–	–	40.005 ± 0.005 mm (1.5750 ± 0.0002 inch)	T	–	4C- 8164	2.540 mm (0.1000 inch)	102.250 ± 0.076 mm (4.0256 ± 0.0030 inch)
	107-7563	–	–		T	–
	115-4124	–	–		T	–
	7E-1298	–	–		T	–
	9Y-7452	–	–		T	–
	–	107- 7545	238- 2716	40.031 ± 0.007 mm (1.5760 ± 0.0003 inch)	T	–
	–	107- 7553	238- 2716		T	–
	–	115- 4088	238- 2716		T	–
	–	6I- 1210	238- 2716		T	–
	–	6I- 4248	238- 2716		T	–
3116	101-4495	–	–	40.031 ± 0.007 mm (1.5760 ± 0.0003 inch)	T	–	4C- 8164	2.540 mm (0.1000 inch)	102.250 ± 0.076 mm (4.0256 ± 0.0030 inch)
	105-1710	–	–	40.005 ± 0.005 mm (1.5750 ± 0.0002 inch)	T	–
	107-7563	–	–		T	–
	115-4124	–	–		T	–
	4P-2990	–	–		T	–
	6I-1144	–	–	40.031 ± 0.007 mm (1.5760 ± 0.0003 inch)	T	–
	7C-5668	–	–		T	–
	7E-1298	–	–		T	–
	9Y-7452	–	–	40.005 ± 0.005 mm (1.5750 ± 0.0002 inch)	T	–
	—	105- 1720	238- 2716	40.031 ± 0.007 mm (1.5760 ± 0.0003 inch)	T	–
	–	107- 7545	238- 2716		T	–
	–	107- 7553	238- 2716		T	–
	–	107- 7852	238- 2716		T	–
	–	115- 4088	238- 2716		T	–
	–	142- 7307	238- 2716		T	–
	–	6I- 1210	238- 2716		T	–
	–	6I- 4248	238- 2716		T	–
3126	–	113- 6119	238- 2726	40.031 ± 0.007 mm (1.5760 ± 0.0003 inch)	T	–	186- 0190	2.540 mm (0.1000 inch)	104.709 ± 0.040 mm (4.1224 ± 0.0016inch)
	–	133- 4983	238- 2726		T	–
	–	133- 5044	238- 2726		T	–
	–	144- 3444	238- 2726		T	–
	–	150- 4621	238- 2726		T	–
	–	164- 6556	238- 2726		T	–
	–	175- 3671	238- 2726		T	–
3126B 3126E	–	150- 4621	238- 2726	40.020 ± 0.008 mm (1.5756 ± 0.0003 inch)	T	–	186- 0190	2.540 mm (0.1000 inch)	104.709 ± 0.040 mm (4.1224 ± 0.0016inch)
	–	165- 4265	238- 2726		T	–
	–	197- 9320	238- 2726		T	–
	197-9340	–	–	40.012 ± 0.003 mm (1.5753 ± 0.0001 inch)	T	–	325- 8420	3.162 mm (0.1245 inch)	109.660 ± 0.100 mm (4.3171 ± 0.0039 inch)
	238-2729	–	–	40.012 ± 0.003 mm (1.5753 ± 0.0001 inch)	T	–	325- 8420	3.162 mm (0.1245 inch)	109.810 ± 0.100 mm (4.3232 ± 0.0039 inch)
3160	9L-7737	–	–	38.118 ± 0.005 mm (1.5007 ± 0.0002 inch)	S	3.277 ± 0.013 mm (0.1290 ± 0.0005 inch)	–	–	–
	9L-7827	–	–		S		–	–	–
	9L-7828	–	–		S		–	–	–
3176 3176B	–	4P- 5852	238- 2710	50.830 ± 0.008 mm (2.0012 ± 0.0003 inch)	T	–	4C- 8165	3.500 mm (0.1378 inch)	123.530 ± 0.097 mm (4.8634 ± 0.0038 inch)
3176C	–	133- 7098	238- 2710	50.830 ± 0.008 mm (2.0012 ± 0.0003 inch)	T	–	4C- 8165	3.500 mm (0.1378 inch)	123.530 ± 0.097 mm (4.8634 ± 0.0038 inch)
3176C	–	4P- 5852	238- 2710	50.830 ± 0.008 mm (2.0012 ± 0.0003 inch)	T	–	4C- 8165	3.500 mm (0.1378 inch)	123.530 ± 0.097 mm (4.8634 ± 0.0038 inch)
3196	–	144- 2948	238- 2712	53.205 ± 0.010 mm (2.0947 ± 0.0004 inch)	T	–	208- 7632	3.500 mm (0.1378 inch)	128.530 ± 0.097 mm (5.0602 ± 0.0038 inch)
3196	–	197- 9328	238- 2712	53.205 ± 0.010 mm (2.0947 ± 0.0004 inch)	T	–	208- 7632	3.500 mm (0.1378 inch)	128.530 ± 0.097 mm (5.0602 ± 0.0038 inch)
3204	2W-4831	–	–	38.118 ± 0.005 mm (1.5007 ± 0.0002 inch)	S	3.276 ± 0.013 mm (0.1290 ± 0.0005 inch)	–	–	–
	2W-8410	–	–		S		–	–	–
	2W-8411	–	–		S		–	–	–
	7C-1146	–	–		S		–	–	–
3208	101-0812	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	T	–	4C- 8166	2.540 mm (0.1000 inch)	111.087 ± 0.076 mm (4.3735 ± 0.0030 inch)
	118-2285	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	T	–	4C- 8166	2.540 mm (0.1000 inch)	111.087 ± 0.076 mm (4.3735 ± 0.0030 inch)
	2W-4831	–	–	38.118 ± 0.005 mm (1.5007 ± 0.0002 inch)	S	3.276 ± 0.013 mm (0.1290 ± 0.0005 inch)	–	–	–
	2W-8410	–	–		S		–	–	–
	2W-8411	–	–		S		–	–	–
	2W-8412	–	–		S		–	–	–
	2W-8414	–	–		S		–	–	–
	2W-8415	–	–		S		–	–	–
	7C-2553	–	–		S		–	–	–
	7C-3858	–	–		S		–	–	–
	7E-4729	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	T	–	4C- 8166	2.540 mm (0.1000 inch)	111.087 ± 0.076 mm (4.3735 ± 0.0030 inch)
	7E-9937	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	T	–	4C- 8166	2.540 mm (0.1000 inch)	111.087 ± 0.076 mm (4.3735 ± 0.0030 inch)
	7W-3846	–	–	38.118 ± 0.005 mm (1.5007 ± 0.0002 inch)	S	3.276 ± 0.013 mm (0.1290 ± 0.0005 inch)	–	–	–
	7W-3847	–	–		S		–	–	–
	7W-8111	–	–		S		–	–	–
	9L-7737	–	–		S		–	–	–
	9L-7827	–	–		S		–	–	–
	9L-7828	–	–		S		–	–	–
	9Y-1219	–	–		S		–	–	–
	9Y-4187	–	–		S		–	–	–
3304	129-0358	–	–	43.188 ± 0.004 mm (1.7003 ± 0.0002 inch)	S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
	164-6560	–	–		S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
	165-4262	–	–		T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
	8N-3180	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
	8N-3184	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	S		–	–	–
	9N-5250	–	–	43.182 ± 0.005 mm (1.7001 ± 0.0002 inch)	S		–	–	–
	9N-5403	–	–	43.182 ± 0.005 mm (1.7001 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
3304B	164-6560	–	–	43.118 ± 0.004 mm (1.6976 ± 0.0002 inch)	S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
	165-4262	–	–	43.118 ± 0.004 mm (1.6976 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
	168-4531	–	–	43.118 ± 0.004 mm (1.6976 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
3304 GAS	4P-2654	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	S	3.230 ± 0.010 mm (0.1272 ± 0.0004inch)	–	–	–
	4P-2655	–	–		S	3.230 ± 0.010 mm (0.1272 ± 0.0004inch)	–	–	–
	8L-5277	–	–		S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
3306	107-3565	–	–	43.118 ± 0.004 mm (1.6976 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
	164-6560	–	–		S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
	165-4262	–	–		T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
	168-4531	–	–		T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
	8N-3180	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
	8N-3184	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	S		–	–	–
	9N-5250	–	–	43.195 ± 0.008 mm (1.7006 ± 0.0003 inch)	S		–	–	–
	9N-5403	–	–	43.195 ± 0.008 mm (1.7006 ± 0.0003 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
3306B	165-4262	–	–	43.118 ± 0.004 mm (1.6976 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
3306B	168-4531	–	–	43.118 ± 0.004 mm (1.6976 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
3306C	107-3565	–	–	43.188 ± 0.004 mm (1.7003 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
3306C	154-8087	–	–	43.188 ± 0.004 mm (1.7003 ± 0.0002 inch)	T	–	4C- 8168	2.540 mm (0.1000 inch)	117.455 ± 0.097 mm (4.6242 ± 0.0038 inch)
3306 GAS	4P-2654	–	–	38.128 ± 0.005 mm (1.5011 ± 0.0002 inch)	S	3.230 ± 0.010 mm (0.1272 ± 0.0004inch)	–	–	–
	4P-2655	–	–		S	3.230 ± 0.010 mm (0.1272 ± 0.0004inch)	–	–	–
	8L-5277	–	–		S	3.233 ± 0.013 mm (0.1273 ± 0.0005 inch)	–	–	–
3406	290-0017	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
3406	7N-3633	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	–	2.540 mm (0.1000 inch)	133.932 ± 0.097 mm (5.2729 ± 0.0038 inch)
3406B	160-1131	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	290-0017	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	7C-0473	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	325- 8422	3.300 mm (0.1299 inch)	134.639 ± 0.097 mm (5.3007 ± 0.0038 inch)
	7C-3496	–	–	50.808 ± 0.004 mm (2.0003 ± 0.0002 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	7E-0305	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	7E-0539	–	–		T	–
	7E-8656	–	–		T	–
	7E-8700	–	–		T	–
	7E-8885	–	–		T	–
	9Y-3116	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–
	9Y-7212	–	–		T	–
	9Y-9889	–	–		T	–
3406C	100-7403	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	101-0016	–	–	55.021 ± 0.004 mm (2.1662 ± 0.0002 inch)	T	–		3.300 mm (0.1299 inch)
	117-5063	–	–	55.021 ± 0.004 mm (2.1662 ± 0.0002 inch)	T	–		3.300 mm (0.1299 inch)
	–	123- 4612	163- 0930	50.824 ± 0.004 mm (2.0009 ± 0.0002 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	–	125- 8869	130- 0241	55.047 ± 0.008 mm (2.1672 ± 0.0003 inch)	T	–
	–	138- 1791	130- 0241	55.047 ± 0.008 mm (2.1672 ± 0.0003 inch)	T	–
	160-1131	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	290-0017	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–		3.302 mm (0.1300 inch)
	7E-0292	–	–	55.021 ± 0.004 mm (2.1662 ± 0.0002 inch)	T	–		3.300 mm (0.1299 inch)
	7E-0305	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–		3.302 mm (0.1300 inch)
	7E-0539	–	–		T	–
	7E-8656	–	–		T	–
	7E-8700	–	–		T	–
	9Y-9889	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–
3406E	–	135- 2837	130- 0241	55.047 ± 0.008 mm (2.1672 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	–	139- 8500	284- 6039	55.051 ± 0.006 mm (2.1673 ± 0.0002 inch)	T	–	208- 7636		137.436 ± 0.100 mm (5.4109 ± 0.0039 inch)
	–	145- 6700	130- 0241	55.077 ± 0.008 mm (2.1684 ± 0.0003 inch)	T	–	325- 8423		134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	–	149- 5566	130- 0241	55.047 ± 0.008 mm (2.1672 ± 0.0003 inch)	T	–
	–	180- 7352	132- 6663		T	–
	–	221- 2305	132- 6663		T	–
	–	7C- 2888	128- 2830		T	–
3406 GAS	107-1704	–	–	50.815 ± 0.005 mm (2.0006 ± 0.0002 inch)	S	3.864 ± 0.010 mm (0.1521 ± 0.0004inch)	–	–	–
	4P-8996	–	–		S	3.864 ± 0.010 mm (0.1521 ± 0.0004inch)	–	–	–
	7E-3888	–	–		S	2.527 ± 0.013 mm (0.0995 ± 0.0005 inch)	–	–	–
3408	7N-3511	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	–	2.540 mm (0.1000 inch)	133.932 ± 0.097 mm (5.2729 ± 0.0038 inch)
	7N-3633	–	–		T	–	–	2.540 mm (0.1000 inch)	133.932 ± 0.097 mm (5.2729 ± 0.0038 inch)
	9Y-7212	–	–		T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
3408B	174-6102	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	7N-3633	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	–	2.540 mm (0.1000 inch)	133.932 ± 0.097 mm (5.2729 ± 0.0038 inch)
	9Y-7212	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
3408C	174-6102	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	174-6103	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	9Y-7212	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	367-5183	–	–	134.82 ± 0.1 mm (5.308 ± 0.004 inch)	T	–	325-8423	3.3 mm (0.13 inch)	134.82 ± 0.1 mm (5.30786 ± 0.00394 inch)
3408E	172-3280	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	174-6102	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	192-2208	–	–	50.858 ± 0.008 mm (2.0023 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
3408 GAS	107-1704	–	–	50.815 ± 0.005 mm (2.0006 ± 0.0002 inch)	S	3.864 ± 0.010 mm (0.1521 ± 0.0004inch)	–	–	–
	4P-8996	–	–		S	3.864 ± 0.010 mm (0.1521 ± 0.0004inch)	–	–	–
	7E-3888	–	–		S	2.527 ± 0.013 mm (0.0995 ± 0.0005 inch)	–	–	–
	7E-8335	–	–		S	2.527 ± 0.013 mm (0.0995 ± 0.0005 inch)	–	–	–
3412	–	123- 4612	163- 0930	50.848 ± 0.008 mm (2.0019 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	174-6102	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	174-6103	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	7N-3633	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	–	2.540 mm (0.1000 inch)	133.932 ± 0.097 mm (5.2729 ± 0.0038 inch)
	9Y-7212	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
3412B	174-6102	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	7N-3633	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	–	2.540 mm (0.1000 inch)	133.932 ± 0.097 mm (5.2729 ± 0.0038 inch)
	9Y-7212	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
3412C	–	123- 4612	163- 0930	50.848 ± 0.008 mm (2.0019 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	–	155- 4336	163- 0930	50.853 ± 0.008 mm (2.0021 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	174-6102	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	174-6103	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–
	9Y-7212	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–
3412D	330-6090	–	–	60.093 ± 0.008 mm (2.3658 ± 0.0003 inch)	T	–	325- 8425	3.300 mm (0.1299 inch)	142.250 ± 0.100 mm (5.6004 ± 0.0039 inch)
3412E	–	113- 5999	163- 0930	50.848 ± 0.008 mm (2.0019 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	–	123- 4612	163- 0930		T	–
	–	155- 4336	163- 0930		T	–
	172-3280	–	–	50.814 ± 0.004 mm (2.0005 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	–	173- 0138	163- 0930	50.853 ± 0.007 mm (2.0021 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	174-6102	–	–	50.814 ± 0.004 mm (2.0006 ± 0.0002 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
	192-2208	–	–	50.858 ± 0.008 mm (2.0023 ± 0.0003 inch)	T	–	325- 8423	3.300 mm (0.1299 inch)	134.820 ± 0.100 mm (5.3079 ± 0.0039 inch)
	192-2209	–	–	50.858 ± 0.008 mm (2.0023 ± 0.0003 inch)	T	–
	–	197- 9314	160- 0930	50.848 ± 0.0089 mm (2.0019 ± 0.0003 inch)	T	–
	9Y-7212	–	–	50.815 ± 0.008 mm (2.0006 ± 0.0003 inch)	T	–	4C- 8169	3.302 mm (0.1300 inch)	134.341 ± 0.097 mm (5.2890 ± 0.0038 inch)
G3412	107-1704	–	–	50.815 ± 0.005 mm (2.0006 ± 0.0002 inch)	S	3.864 ± 0.010 mm (0.15213 ± 0.0004inch)	–	–	–
	127-5723	–	–		S		–	–	–
	160-7992	–	–		S		–	–	–
	160-7994	–	–		S		–	–	–
	4P-7187	–	–		S	2.525 ± 0.010 mm (0.0994 ± 0.0004inch)	–	–	–
	4P-8996	–	–		S	3.864 ± 0.010 mm (0.15213 ± 0.0004inch)	–	–	–
	136-6007	–	–		S		–	–	–
	112-4585	–	–		S		–	–	–
	7E-3888	–	–		S	2.527 ± 0.013 mm (0.0995 ± 0.0005 inch)	–	–	–
	7E-8335	–	–		S	2.527 ± 0.013 mm (0.0995 ± 0.0005 inch)	–	–	–
3508	299-5204	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	314-5005	–	–		T	–
	374-2082	–	–		T	–
	374-2083	–	–		T	–
	7C-2431	–	–	70.003 ± 0.005 mm (2.7560 ± 0.00020 inch)	T	–	9U- 7360	3.500 mm (0.1378 inch)	168.630 ± 0.097 mm (6.6390 ± 0.0038 inch)
	9Y-4124	–	–	70.003 ± 0.005 mm (2.7560 ± 0.00020 inch)	T	–	9U- 7360	3.500 mm (0.1378 inch)	168.630 ± 0.097 mm (6.6390 ± 0.0038 inch)
3508B	299-5204 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
3508C	314-5006 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	314-5007	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	233-2431	–	–	69.864 mm (2.7505 inch) to 70.075 mm (2.7588 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
3508 GAS	101-4140	–	–	70.003 ± 0.005 mm (2.7560 ± 0.0002 inch)	S	3.630 ± 0.010 mm (0.1429 ± 0.0004inch)	–	–	–
	133-9375	–	–		S		–	–	–
	192-3896	–	–		S		–	–	–
	197-3765	–	–		S		–	–	–
	212-7596	–	–		S		–	–	–
	6I-4609	–	–		S		–	–	–
	7E-7600	–	–		S		–	–	–
G3508B	280-3213 342-9847	–	–	70.003 ± 0.005 mm (2.7560 ± 0.0002 inch)	–	3.6 ± 0.01 mm (0.142 ± 0.0004inch)	–	–	–
3512	314-5005 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	7C-2431	–	–	70.380 ± 0.100 mm (2.7709 ± 0.0039 inch)	T	–	9U- 7360		168.630 ± 0.097 mm (6.6390 ± 0.0038 inch)
	9Y-4124	–	–	70.380 ± 0.100 mm (2.7709 ± 0.0039 inch)	T	–	9U- 7360		168.630 ± 0.097 mm (6.6390 ± 0.0038 inch)
3512B	–	172- 0919	155- 5271	69.988 ± 0.005 mm (2.7554 ± 0.0002 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)
3512B	299-5204 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
3512C	–	249- 4512	155- 5271	69.988 ± 0.005 mm (2.7554 ± 0.0002 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)
	–	279- 6770	155- 5271	69.988 ± 0.005 mm (2.7554 ± 0.0002 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)
	314-5006 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.75870 ± 0.00031 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	314-5007	–	–	70.071 ± 0.008 mm (2.75870 ± 0.00031 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	348-5357 339-3027 349-8473 369-1284 376-8090 343-7301	–	–	70.071 ± 0.008 mm (2.75870 ± 0.00031 inch)	T	–	–	3.500 mm (0.1378 inch)	164.397 ± 0.111 mm (6.4723 ± 0.0044 inch)
3512 GAS	101-4140	–	–	70.003 ± 0.005 mm (2.7560 ± 0.0002 inch)	S	3.630 ± 0.010 mm (0.1429 ± 0.0004inch)	–	–	–
	133-9375	–	–		S		–	–	–
	197-3765	–	–		S		–	–	–
	212-7596	–	–		S		–	–	–
	6I-4609	–	–		S		–	–	–
	7C-3895	–	–		S		–	–	–
	7E-7600	–	–		S		–	–	–
G3512E	346-2096	–	–	70.003 ± 0.005 mm (2.7560 ± 0.0002 inch)	S	3.6 ± 0.01 mm (0.142 ± 0.0004inch)	–	–	–
3516	314-5005 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	7C-2431	–	–	70.380 ± 0.100 mm (2.7709 ± 0.0039 inch)	T	–	9U- 7360		168.630 ± 0.097 mm (6.6390 ± 0.0038 inch)
	9Y-4124	–	–	70.380 ± 0.100 mm (2.7709 ± 0.0039 inch)	T	–	9U- 7360		168.630 ± 0.097 mm (6.6390 ± 0.0038 inch)
	144-0720	–	–	70.035 ± 0.005 mm (2.75728 ± 0.00020 inch)	T	–	9U- 7360	3.500 mm (0.1378 inch)	168.630 ± 0.097 mm (6.6390 ± 0.0038 inch)
3516B	–	172- 0919	155- 5271	69.988 ± 0.005 mm (2.7554 ± 0.0002 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)
	–	230- 9043	230- 8095	70.053 ± 0.008 mm (2.7580 ± 0.0003 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)
	299-5204	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	314-5006 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.1378 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	331-9822	–	–	70.071 ± 0.008 mm (2.75870 ± 0.00031 inch)	T	–	–	3.500 mm (0.1378 inch)	164.397 ± 0.111 mm (6.4723 ± 0.0044 inch)
3516C	–	249- 4512	155- 5271	69.988 ± 0.005 mm (2.7554 ± 0.0002 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)
	–	279- 6770	155- 5271	69.988 ± 0.005 mm (2.7554 ± 0.0002 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)
	314-5006	–	–	70.053 ± 0.008 mm (2.7580 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.13780 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	314-5007 374-2082 374-2083	–	–	70.071 ± 0.008 mm (2.7587 ± 0.0003 inch)	T	–	246- 1176	3.500 mm (0.13780 inch)	168.350 ± 0.111 mm (6.6279 ± 0.0044 inch)
	348-5357	–	–	70.071 ± 0.008 mm (2.75870 ± 0.00031 inch)	T	–		3.500 mm (0.1378 inch)	164.397 ± 0.111 mm (6.4723 ± 0.0044 inch)
3516 GAS	101-4140	–	–	70.003 ± 0.005 mm (2.7560 ± 0.0002 inch)	S	3.630 ± 0.010 mm (0.1429 ± 0.0004inch)	–	–	–
	133-9375	–	–		S		–	–	–
	197-3765	–	–		S		–	–	–
	212-7596	–	–		S		–	–	–
	6I-4609	–	–		S		–	–	–
	7C-3895	–	–		S		–	–	–
	7E-7600	–	–		S		–	–	–
	262-2061	–	–		S		–	–	–
G3520E	346-2096	–	–	70.003 ± 0.005 mm (2.7560 ± 0.0002 inch)	S	3.6 ± 0.01 mm (0.142 ± 0.0004inch)	–	–	–
3524B	–	172- 0919	155- 5271	69.988 ± 0.005 mm (2.7554 ± 0.0002 inch)	T	–	204- 8041	4.100 mm (0.1614 inch)	169.494 ± 0.111 mm (6.6730 ± 0.0044 inch)

CAT parts

KOMATSU, DOOSAN, SEM,CAT

385-1657 3851657 Caterpillar pistons

search

translator

About

search
