Caterpillar 518-5133 324-9485

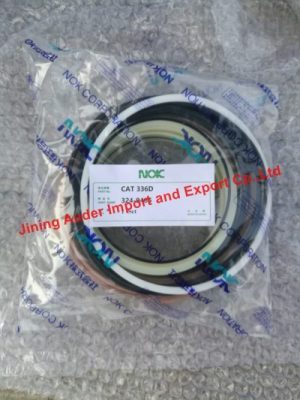

518-5133 324-9485 cylinder seal kit
322C, 323DL, 324D, 324DL, 324E, 324EL, 324ELN, 325D, 325DL, 329D, 329DL, 329DLN, 329E, 329EL, 329ELN, 330D, 330D FM, 330DL, 330DLN, 336D, 336DL, 336DLN, 336D2, 336D2L, 336E, 336EH, 336E
weight 0.5 kg
Description:
Hydraulic Cylinder Seal Kits contain all seals required for a complete reseal of a hydraulic cylinder.
cylinder assy 358-5972,216-6607,289-7994,311-9526
PARTS NEEDED
Qty | Part Number | Description |
| *******Group 1******* | ||
| 2 | 1P3703 | SEAL-RECTANGULAR |
| 1 | 3249485 | KIT-SEAL |
| 1 | 3597191 | STOP |
| 1 | BULK_OIL | HYDRAULIC OIL – 5 U.S. GALLON |
| In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 6% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
| ||
| *******Group 2******* | ||
| 2 | 1P3703 | SEAL-RECTANGULAR |
| 1 | 3249485 | KIT-SEAL |
| 1 | 3597191 | STOP |
| 1 | BULK_OIL | HYDRAULIC OIL – 5 U.S. GALLON |
| In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 6% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer. | ||
