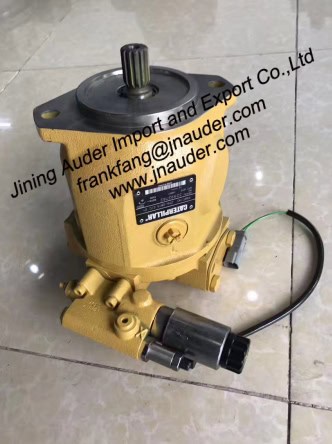

Caterpillar 259-0815
259-0815 2590815 10R-8707 10R8707 PUMP GP-PISTON
330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, M330D
Test Bench Tooling
Part Number | Adapter Plate | Drive Adapter | Suction Adapter | Split Flange | Flange Adapter | Case Drain Port |
|---|---|---|---|---|---|---|
| 147-5826 | 1U-9127 | 1U-9833 | 1U-9870 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 170-9918 | 1U-9127 | 1U-9833 | 1U-9869 | 8C-3205 | 9U-7443 | 3/4-16 STOR |
| 173-3420 | 1U-9127 | 1U-9846 | 1U-9869 | 8C-3205 | 9U-7443 | 3/4-16 STOR |
| 203-8731 | 1U-9128 | 1U-9834 | 1U-9873 | 1P-4577 | 9U-7444 | 7/8-14 STOR |
| 204-2576 | Tandem pumps, see 172-5636 (REHS 1375) or 204-9749 | |||||
| 204-2578 | 1U-9127 | 1U-9833 | 1U-9873 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 204-9749 | 1U-9128 | 1U-9834 | 1U-9873 | 1P-4577 | 9U-7444 | 7/8-14 STOR |
| 214-1097 | 1U-9128 | 1U-9834 | 1U-9873 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 220-0780 | 1U-9128 | 1U-9394 | 1U-9874 | 1P-4578 | 9U-7445 | 1 1/16-12STOR |
| 230-7973 | 1U-9127 | 1U-9833 | 1 5/8-12 STOR | 1 1/16-12 STOR | 3/4-16 STOR | |
| 235-4257 | 1U-9126 | 1U-9836 | 1U-9872 | 8C-3205 | 9U-7443 | 9/16-18 STOR |
| 247-8917 | 1U-9127 | 1U-9846 | 1U-9869 | 8C-3205 | 9U-7438 | 1/2 STOR |
| 247-8918 | 1U-9127 | 4C-4088 | 1U-9870 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 247-8968 | 1U-9127 | 4C-4088 | 1U-9870 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 259-0814 | 1U-9127 | 1U-9846 | 1U-9869 | 8C-3205 | 9U-7443 | 1/2 STOR |
| 259-0815 | 1U-9127 | 1U-9833 | 1U-9869 | 8C-3205 | 9U-7443 | 1/2 STOR |
| 268-4685 | 1U-9127 | 1U-9833 | 1U-9869 | 8C-3205 | 9U-7443 | 3/4-16 STOR |
| 293-9611 | 1U-9127 | 1U-9833 | 1U-9870 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 295-9426 | 328-1483 | 1U-9833 | 1U-9869 | 1 1/16-12 STOR | 3/4-16 STOR | |
| 299-9129 | 1U-9127 | 4C-4088 | 1U-9870 | 1P-4577 | 9U-7444 | 7/8-14 STOR |
| 299-9130 | 1U-9127 | 4C-4088 | 1U-9873 | 1P-4577 | 9U-7444 | 7/8-14 STOR |
| 299-9131 | 1U-9127 | 4C-4088 | 1U-9873 | 1P-4577 | 9U-7444 | 7/8-14 STOR |
| 325-9774 | 1U-9127 | 1U-9833 | 1U-9869 | 8C-3205 | 9U-7443 | 3/4-16 STOR |
| 325-9777 | Tandem pumps, see 325-9778 (REHS3451) or 325-9774 | |||||
| 325-9783 | Tandem pumps, see 325-9786 (REHS3451) or 325-9774 | |||||
| 325-9784 | 1U-9127 | 4C-4088 | 1U-9873 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 325-9789 | 1U-9127 | 1U-9833 | 1U-9870 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 333-3805 | 1U-9128 | 1U-9834 | 1U-9873 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 333-7825 | Tandem pumps, see 214-1098 (REHS1376) or 333-7826 | |||||
| 333-7826 | 1U-9128 | 1U-9834 | 1U-9873 | 1P-4577 | 9U-7444 | 7/8-14 STOR |
| 338-8392 | 1U-9127 | 1U-9833 | 1U-9869 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 340-2121 | 1U-9128 | 1U-9834 | 1U-9874 | 8C-3206 | 9U-7445 | 1 1/16-12STOR |
| 345-9779 | 1U-9127 | 4C-4088 | 1U-9869 | 8C-3206 | 9U-7444 | 7/8-14 STOR |
| 348-7627 | Tandem pumps, see 318-2595 (REHS1447) or 345-9779 | |||||
| 355-2406 | 1U-9127 | 1U-9833 | 1U-9869 | 8C-3205 | 9U-7443 | 3/4-16 STOR |
| 355-2407 | Triple pump, see 355-2397 (REHS3451), 289-4027 (REHS1375), or 355-2406 | |||||
| 365-2144 | Double pump, see 333-3805 (This document) and 366-4589 (REHS1517) | |||||
| 369-3941 | Double pump, see 333-3805 (This document) and 365-2143 (REHS1517) | |||||
| 392-0757 | 1U-9129 | 1U-9835 | 1U-9874 | 9U-7440 | 1P-5767 | 1 1/16-12STOR |
| 392-6623 | 1U-9127 | 1U-9833 | 1U-9870 | 9U-7444 | 8C-3206 | 7/8-14 STOR |
| 396-7175 | 1U-9127 | 1U-9833 | 1U-9869 | 9U-7443 | 8C-3205 | 3/4-16 STOR |
| 448-9705 | 1U-9127 | 4C-4088 | 1U-9870 | 9U-7444 | 8C-3206 | 3/4-16 STOR |
