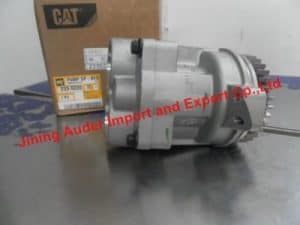

Caterpillar 233-5220
235-5220 PUMP GP-ENGINE OIL
140H,143H,14H,14M,160H,163H,16H,16M,3176,3176B,3176C,3196,345B,345B II,345B II MH,345B L,345C,345C L,345C MH,345D,345D L,345D L VG,349D,349D L,365B,365B II,365B L,572R II,621H,621K,623H,623K LRC,627H,627K LRC,65E,725,730,730C,75C,75D,75E,814F,815F,816F,85C,85E,95E,966G II,966H,972G II,972H,980C,C-10,C-12,C11,C12,C13,CPT372,CX31-C13I,D7R II,D8N,MTC835,R1600,R1600G,R1600H,R1700 II,R1700G,RM-300,SBF214,SUF557,TH35-C11I,TH35-C13I,TK1051,W345B II,W345CMH
weight 3.40 kg
235-5220
Reman Long Block | 10R1383 | 10R1384 |
Application | C-10 Truck (BRIDGE) | C-12 Truck |
Ref. Production Block Group | 115-2982 | 115-2983 |
Ref. Production Piston Body As | 197-9358 183-2915 (2 piece piston) | 187-5284 197-9374 (2 piece piston) |
Long Block Consist | ||
Short Block | 10R-1493 | 10R-1491 |
Cylinder Head Gp | 148-2144 | 148-2144 |
Camshaft Gp | 215-7784 | 215-7771 |
Gear Gp-Front | 117-2750 | 117-2750 |
Mechanism Gp-Valve | 0R-9662 | 0R-9662 |
Housing Gp-Front | 169-4168 | 169-4168 |
Cover Gp | 113-8987 | 113-8987 |
Shipped Loose Parts | ||
Pump GP-F TFR-A | 266-2522 | 190-3443 |
Core As-Oil Cooler | 4P-3754 | 115-4517 |
Pump Gp-Engine Oil | 233-5220 | 233-5220 |
